Columus™ Inflatable Light Tower

Columus is a name for portable inflatable light tower, which outputs high quality luminance by metal halide lamp or HMI lamp. It  integrates high quality HID light sources that could be found in conventional light towers. Besides the virtues that a conventional light tower has, Columus inflatable light tower is best for its portability making transport, storage, setup and use (1 person ok) features, aiming to provide a very different and possible solution for where requiring glare free & 360 degree efficient safey lighting..

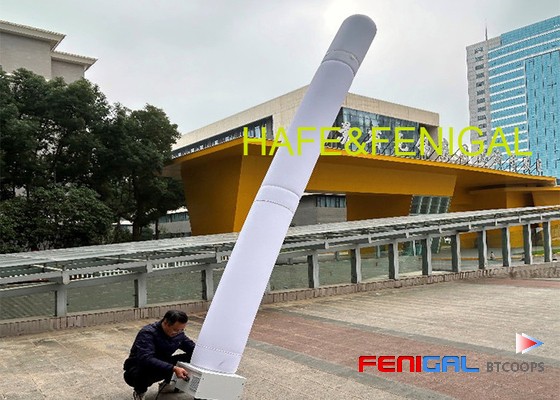

It takes  3-5 minutes to setup a columus light tower only by one person. Easy-to-carry features make it a perfect temporary lighting option for quick deploy night actions or other outdoor activities , i.e. wild rescue, fire response, police checkpoint, emergency operation in confined space or area (for example in subway maintenance), and camping etc..

In all, Columus series Inflatable Light Tower is mainly intended for specific application in special occasions, construction, industrial, safety & rescue etc..

General features

1) Air-inflated column shape structure of special fabric, with built-in blower and integrated electricals

2) Primarily for temporary lighting application in specific occasions - rescuer, fire respondant, police checkpoint etc.

3) Indoor or outdoor use

4) Two type of high efficient HID light source available - metal halide / HMI

5) Electrically adaptable to global electrical power in AC110, 120, 220, 230V etc. DC/AC convertor version for low-watt models.

6) Resistant to wind up to 40km/h; weather proof;

7) Highly portable, easy to transport

Above video: inflatable light tower demo

Columus™ has 3 standard ranges:

• Columus flex   - 400w~2,400w. Lighted area (>1 lx): 1,075m²/11,625ft² ~ 6,632m²/71,386ft²;
                   dia. 40cm x H2.5~4.0m. Either on  mains or generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w), for mobile site, camp, rescue & emergency use etc.

• Columus standard - 400w~2,400w. Lighted area (>1 lx): 1,075m²/11,625ft² ~ 6,632m²/71,386ft²²;
                   Steel frame base + dia. 40cm x H2.8~4.2m. Either on  mains or  generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w), for mobile site, camp, rescue & emergency use etc.

• Columus box - 400w~2,400w. . Lighted area (>1 lx): 1,075m²/11,625ft² ~ 6,632m²/71,386ft²²;
                   dia. 40cm x H2.8~4.2m. Either on  mains or  generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w)

Besides, Columus could also be classified into below categories on light source options:

• Columus MH (metal halide lamps, cold restrike, CCT4200k) - 1x400w / 1x1,000w / 2x1,000w;

• Columus HMI (HMI lamps, quick hot-restrike, CCT5600k) - 1x575w / 1x1,200w / 2x1,200w;

• Columus XN (xenon lamps, instant restrike, CCT3000k, 4200k, 5600k, 6500k etc.)  - 2x100w / 4x100w;

• Columus SV (sodium vapor lamps, cold restrike, CCT2900k) - 1x400w / 1x1,000w;

• Columus LED (is under R&D process, to be at a later time) - expected 200w / 400w etc.

Above video: inflatable light tower demo

Functions

1) lighting/illumination 2) signal 3) decoration 4)Ad.

Applications

1) Construction

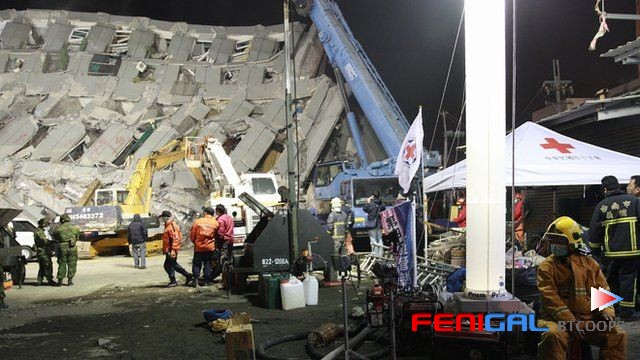

                   2) Safety & rescue, firefighting, police check point etc.
                   3) All kinds of event outdoor illumination
                   4) Camping
                   5) Military maneuvre
                 6) National safety, drill

Featured products

• Columus flex400 - 400w metal halide, 36,000lm;

• Columus flex575 - 575w HMI, 49,000lm;

• Columus flex1000 - 1000w metal halide, 110,000lm;

• Columus standard - 1000w metal halide, 110,000lm;

• Columus standard - 1200w HMI, 110,000lm;

Columus&trade; series Inflatable Light Towers are listed below:

• Columus box



• Columus standard



• Columus flex
